We make the most effective book display fixtures in the world.
Wood Bookcases: Straight, Flared, Tapered & Cascade
Straight Cases
Straight cases are the quintessential fixture choice for many bookstores. They provide the maximum capacity and display options with the smallest footprint. They are the perfect choice for elegant design or maximum floor plan utilization. Straight cases come standard with a tipped bottom shelf and adjustable "T" shelves for enhanced merchandising capabilities.
Optional features:
Finished Back (single & end cap)
Slatwall Finished Back (single & end cap)
Slatwall Interior Back
Slatwall End Panel (double & end cap)
Open Top
Flat Bottom Shelf
Recessed Metal Standards
Valance (single)
Wired or Unwired Light (single)
Wood or Glass Doors - Sliding or Hinged
Straight Single Sided Cases
Straight single sided cases are ideal for perimeters and walls. There are many options that can be added to a straight single sided case to make them meet your specific retail needs.
Most common size is:
84"H x 48"W x 11 3/4"D
Includes 6 "T" shelves with 8-1/2" usable shelf depth and 5" H shelf back.
Straight Double Sided Cases
Straight double sided cases are great for floor display. They can stand alone, be arranged in rows, or extend out from walls or columns.
Most common size is:
54"H x 48"W x 23-1/2"D
Includes 8 "T" shelves with 8-1/2" usable shelf depth and 5" H shelf back.
Straight End Cap
Straight end caps can be used to finish off a row of double sided cases. They come standard with a finished back and its width matches the depth of the corresponding double sided cases.
Most common size is:
54"H x 23 1/2"W x 11 3/4"D
Includes 4 "T" shelves with 8-1/2" usable shelf depth and 5" H shelf back.
Flared Cases
Flared cases are a classic choice for many bookstores. The flared bottom insures merchandise on the lower shelves is easily browsed by customers. They are the perfect choice for elegant design and maximum visibility. Flared cases come standard with a tipped bottom shelf and adjustable "T" and "L" shelves for enhanced merchandising capabilities.
Optional features:
Finished Back (single & end cap)
Slatwall Finished Back (single & end cap)
Slatwall Interior Back
Slatwall End Panel (double & end cap)
Open Top
Flat Bottom Shelf
Recessed Metal Standards
Valance (single)
Wired or Unwired Light (single)
Flared Single Sided Cases
Flared single sided cases are a ideal for perimeters and walls. There are many options that can be added to a flared single sided case to make them meet your specific retail needs.
Most Common Size is:
84" H x 48" W x 15" D
Includes 4 "T" and 2 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Flared Double Sided Cases
Flared double sided cases are great for floor display. They can stand alone, be arranged in rows, or extend out from walls or columns.
Most Common Size is:
54" H x 48" W x 30" D
Includes 4 "T" and 4 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Flared End Cap
Flared end caps can be used to finish off a row of double sided cases. They come standard with a finished back and its width matches the depth of the corresponding double sided cases.
Most Common Size is:
54" H x 30" W x 15" D
Includes 2 "T" and 2 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Tapered Cases
Tapered cases have a sleek design and are a classic choice. All merchandise is displayed at a comfortable viewing angle. Tapered cases come standard with a tipped bottom shelf and adjustable "L" shelves for enhanced merchandising capabilities.
Optional features:
Finished Back (single & end cap only)
Slatwall Finished Back (single & end cap only)
Slatwall Interior Back
Slatwall End Panels (double)
Open Top
Radiused End Panels (double & end cap)
Recessed Metal Standards
Valance (single only)
Wired or Unwired Light (single only)
Tapered Single Sided Cases
Tapered single sided cases are a ideal for perimeters and walls. There are many options that can be added to a tapered single sided case to make them meet your specific retail needs.
Most Common Size is:
84" H x 48" W x 15" D
Includes 6 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Tapered Double Sided Cases
Tapered double sided cases are great for floor display. They can stand alone, be arranged in rows, or extend out from walls or columns.
Most Common Size is:
54" H x 48" W x 30" D
Includes 8 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Tapered End Cap
Tapered end caps can be used to finish off a row of double sided cases. They come standard with a finished back and its width matches the depth of the corresponding double sided cases.
Most Common Size is:
54" H x 30" W x 15" D
Includes 4 "L" shelves with 6-1/2" usable shelf depth and 3" H shelf back.
Cascade Cases
Cascade Cases create overlapping display which effectively merchandises softback, floppy products, such as magazines, children’s books, workbooks, comics, atlases, maps, videos, calendars, and greeting cards. Available in 1, 2 and 3 tiers with five end panel options for 2 and 3 tiered cases.
Optional features:
Finished Back
Slatwall Finished Back
Open Top
Canopy w/ Wired or Unwired Light
Flat Bottom
All-Pocket Bottom
Five Side Profiles for 2 & 3 Tiered Cases:
- Traditional Curved
- Tapered
- Tapered w/ Radius
- Straight
- Straight w/ Radius

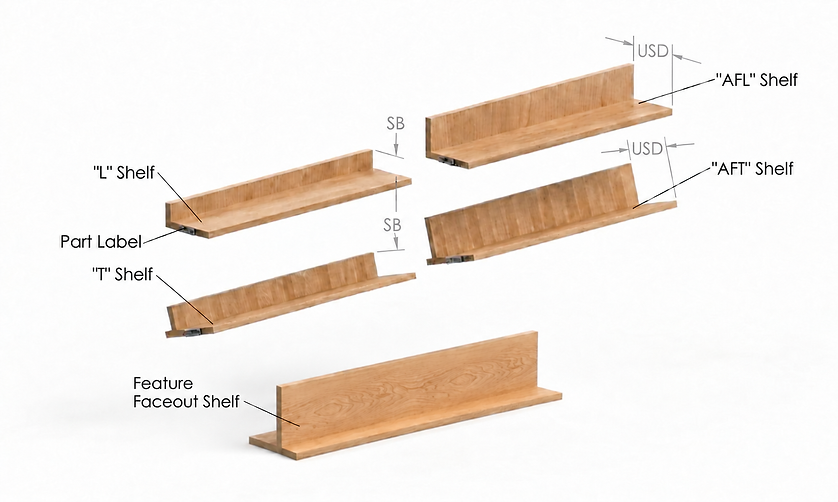

Shelf Types
T Shelf – The shelf back sits 1" away from the case back, allowing clearance when the shelf is tipped by setting the front pins 1–2 holes higher. Recommended for most book shelving because the shelf back helps keep book corners from touching the case back. In flared cases, T shelves are used in the upper section. This is our most common shelf type.
L Shelf – Functions as a flat shelf but includes added support from the shelf back. The shelf back sits flat, or perpendicular, to the case back. In flared cases, L shelves are used in the lower section.
Default shelf sizes:
-
L Shelves - 6 1/2" usable shelf depth w/ 3"H shelf back.
-
T Shelves - 8 1/2" usable shelf depth w/ 5"H shelf back
Feature Faceout Shelf – Designed for single-copy display, bringing one book forward to the edge of the shelf for added visibility and emphasis on the cover. 2" depth.
AFT Shelf (Adjustable Flat T Shelf) – A fixed shelf that is set and locked in place using a Rafix connector. The connector is locked and unlocked with a Phillips-head screwdriver. Recommended for 48" wide cases.
AFL Shelf (Adjustable Flat L Shelf) – Same function as the AFT shelf, but with an L shelf profile.
Flat Shelf – Best when maximum shelf depth is needed for lighter items. Not recommended for heavier products like books. An optional wire notch or grommet hole can be added.
